Apollo AIP-06E 4K UHD Interactive Flat Panel | 60-Point Touch


AIP-06E Copied!

Key Features

  • 4K UHD + 60-Point Touch
  • AI-Powered Smart Platform
  • Built-in Video Conferencing
  • Complete Collaboration Suite
  • Centralized Device Management
  • Wireless Collaboration
  • Professional Connectivity & Management
Contact Us To Purchase

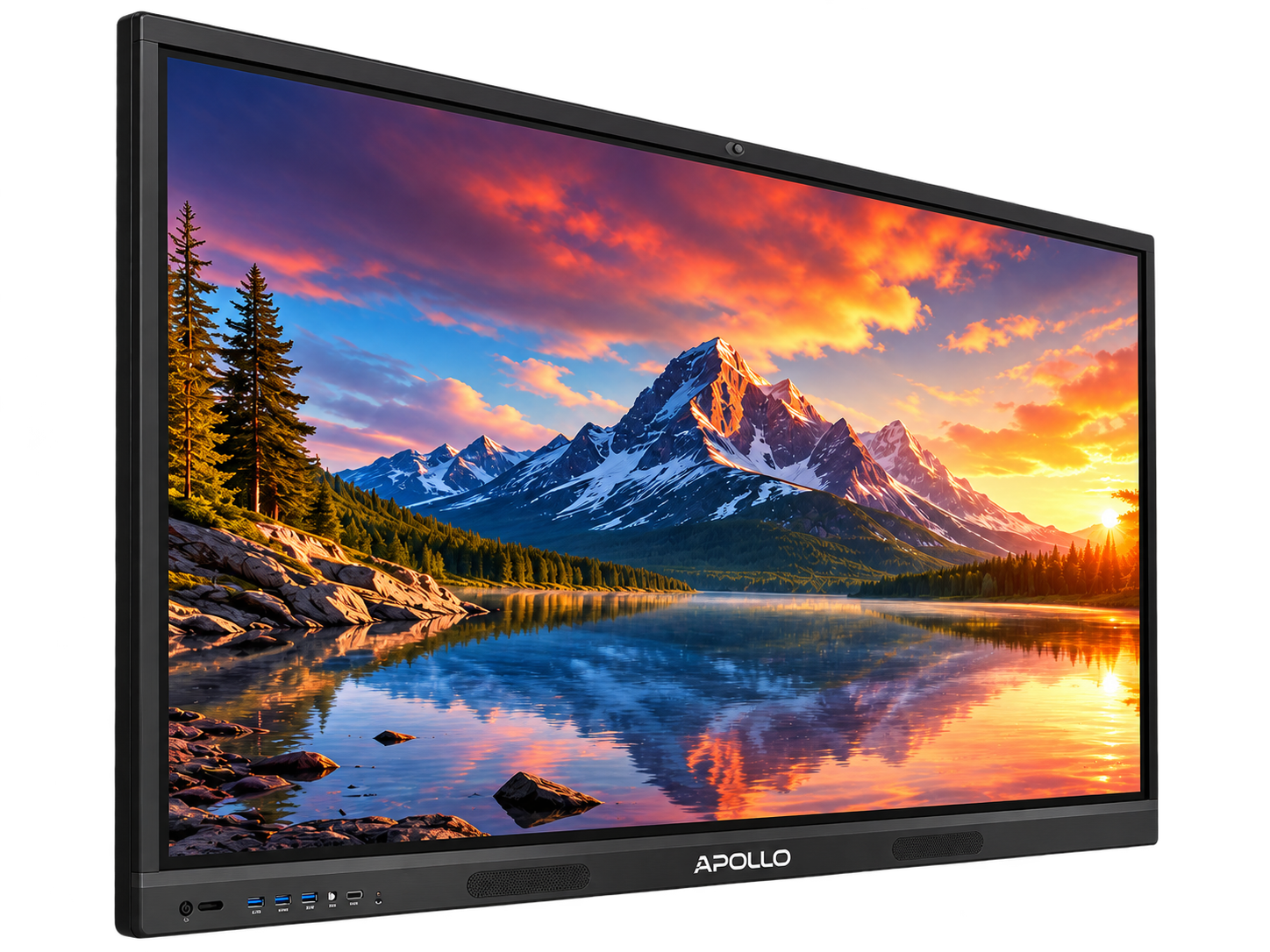

  • The Apollo AIP-06E Series Interactive Flat Panel is a professional 4K UHD Interactive Display designed for modern classrooms, corporate meeting rooms, training centers, conference rooms and collaborative workspaces. Available in 65", 75" and 86" sizes, it combines advanced display technology, interactive touch functionality, AI-powered processing and professional collaboration features in one complete solution.

    Featuring an IPS DLED panel with 4K UHD resolution (3840 × 2160), up to 450 nits brightness, 178° viewing angle and 1.07 billion colors, the AIP-06E delivers clear, detailed and vibrant visuals for presentations, videos, documents and educational content. Its 60-point infrared touch system provides smooth multi-user interaction with less than 2ms touch response. The 4mm 9H tempered glass surface is designed with Anti-Glare, Anti-Fingerprint and Antimicrobial protection for comfortable and reliable daily use.

    Powered by Android 16 EDLA, the panel features an Octa-Core CPU, 8GB DDR4 RAM, 128GB storage, Mali-G52 GPU and 6 TOPS AI computing power, providing a powerful platform for interactive applications, multimedia and smart collaboration. Built-in Wi-Fi 6, Bluetooth 5.2 and NFC provide modern wireless connectivity.

    The AIP-06E is equipped with a 4K AI Camera with 120° FOV and Auto Tracking, together with an 8-microphone array offering over 10m pickup distance, beamforming and noise cancellation. Its 2×20W speakers with a 20W active subwoofer and Dolby Sound support provide an integrated audio solution for meetings, presentations and video conferencing.

    For collaboration, the display supports wireless casting from Windows, Mac, iOS and Android devices, with up to 9 devices connected simultaneously. Its advanced software includes AI-supported whiteboard, handwriting and shape recognition, document insertion, any-source annotation, screen capture, recording, QR-code sharing and smart file management.

    With 3× HDMI inputs, 2× USB-C, USB 3.0, HDMI output, Gigabit RJ45, RS232 and OPS support, the Apollo AIP-06E offers extensive connectivity for professional environments. Centralized device management also enables remote control, content pushing and scheduled power management across multiple displays.

    Backed by a 3-year comprehensive warranty, the Apollo AIP-06E Series is an all-in-one Interactive Flat Panel, Smart Board and Digital Collaboration Display built for modern education, business and professional communication.

Apollo AIP-06E 4K UHD Interactive Flat Panel | 60-Point Touch feature

Tech Specs

Category Specification
Product Series Apollo AIP-06E Series
Available Sizes 65" / 75" / 86"
Panel Type IPS DLED
Resolution 3840 × 2160 — 4K UHD
Brightness 350 / 400 / 450 nits
Aspect Ratio 16:9
Viewing Angle 178°
Refresh Rate 60Hz
Color Depth 1.07B (10-bit)
Pixel Pitch 0.372 × 0.372 mm
Panel Lifetime 60,000 hours
Touch Points 60-point
Touch Technology Infrared
Touch Response <2 ms
Touch Surface Anti-Glare, Anti-Fingerprint, Antimicrobial
Glass 4mm 9H Tempered Glass
Operating System Android 16 EDLA
CPU 4× Cortex-A72 + 4× Cortex-A53 Octa-Core
GPU Quad-Core Mali-G52
RAM 8GB DDR4
Storage 128GB eMMC
Clock Speed 2.2GHz
NPU / AI Processing 6 TOPS
Wi-Fi Wi-Fi 6, 2.4GHz / 5GHz
Bluetooth Bluetooth 5.2
NFC Built-in
Wireless Casting Up to 9 devices simultaneously
Supported Platforms Windows / Mac / iOS / Android
4K AI Camera 4K, 120° FOV, Auto Tracking
Microphone 8-Mic Array
Microphone Pickup >10m
Audio Processing Beamforming & Noise Cancellation
Speakers 2×20W + 20W Active Subwoofer
Audio Dolby Sound Supported
USB-C 2×
HDMI Input 3×
USB Type-B Touch 2×
USB 3.0 Type-A 2×
Microphone Input 1×
HDMI Output 1× HDMI 2.0
SPDIF Output 1×
Audio Line Out 1×
RJ45 1× Gigabit Ethernet
RS232 1×
SD Card Slot 1×
OPS Slot 1× Standard OPS
Power Supply AC 100–240V, 50/60Hz
Maximum Power Consumption 300W / 260W / 220W
Standby Power ≤0.5W
Operating Temperature 0°C–50°C
Operating Humidity 10%–90% RH
Warranty 3 Years Comprehensive
Build Material Die-Cast Aluminum
Weight 33kg / 47kg / 60kg
Certifications CE, FCC, ISO, RoHS, SGH, Energy Star
Country of Origin USA
