Apollo AIP-LK7200 7,200-Lumen 4K Laser Projector


AIP-LK7200 Copied!

Key Features

  • 7,200 Lumens High Brightness
  • 4K Enhancement with HDR10
  • RICOH Lens with Flexible Projection
  • 30–300″ Large Screen Projection
  • Advanced Installation & Image Adjustment
  • Professional Connectivity & Control
  • Long-Life Laser Light Source
  • Contact Us To Purchase

    The Apollo AP-LK7200 is a high-performance 7,200-lumen 4K laser projector designed for professional presentation, corporate, educational, commercial, and large-screen applications where exceptional brightness, image quality, and installation flexibility are essential. Combining 4K Enhancement technology, a high 5,000,000:1 contrast ratio, HDR10 support, and a professional RICOH lens, the AP-LK7200 delivers sharp, detailed, and impactful visuals across large projection environments.

    Powered by a 3 × 0.64-inch LCD display system with MLA technology, the projector provides bright and consistent image reproduction with up to 80% uniformity. Its 1.2–2.0 throw ratio, 1.6× zoom, extensive lens-shift capability, and vertical/horizontal keystone correction with 4-corner adjustment provide greater flexibility when positioning the projector.

    The AP-LK7200 supports screen sizes from 30 to 300 inches and accepts video signals up to 3840 × 2160 at 60Hz, making it suitable for large presentations, conference rooms, auditoriums, classrooms, training centers, digital signage, events, and professional AV installations.

    With dual HDMI 2.1 inputs, USB-A, RJ45, RS-232C, Bluetooth 5.0, S/PDIF and 3.5mm audio output, along with PJLink LAN control, the AP-LK7200 offers comprehensive connectivity and professional system integration. Its laser light source provides up to 30,000 hours of ECO-mode life, while multiple brightness and operating modes help optimize performance and energy consumption.

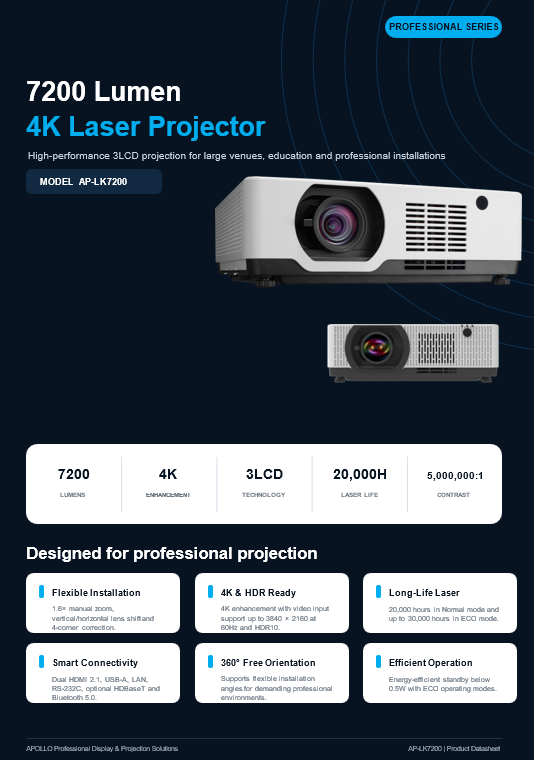

    Apollo AIP-LK7200 7,200-Lumen 4K Laser Projector feature

    Tech Specs

    SpecificationDetails
    Product TypeProfessional 4K Laser Projector
    ModelApollo AP-LK7200
    Brightness7,200 Lumens
    Display TechnologyLiquid Crystal Display (LCD)
    Display Panel3 × 0.64″ with MLA
    Resolution4K Enhancement
    Video Input ResolutionUp to 3840 × 2160 @ 60Hz
    Contrast Ratio5,000,000:1
    Uniformity≥80% (JBMA)
    Aspect RatioCompatible with 4:3 / 16:10
    HDRHDR10 Supported
    LensRICOH Lens
    Focal LengthF 1.5–2.08 / f 17.2–27.7 mm
    Throw Ratio1.2 Wide – 2.0 Tele
    Zoom Ratio1.6×
    Zoom / FocusManual
    Screen Size30–300 inches
    Lens ShiftV: +0%–66% / H: ±29%
    Keystone CorrectionV: ±30° / H: ±25° / 4-Corner Correction
    Light SourceLaser
    Light Source Life20,000 hours Normal / 30,000 hours ECO
    Brightness ModesNormal / ECO / Brightness
    Noise Level38 dB Normal / 30 dB ECO1 / 28 dB ECO2
    Speaker16W × 1
    HDMI InputHDMI 2.1 × 2
    USB-A×2
    RJ45×1
    RS-232C×1
    HDBaseT×1 (Optional)
    Audio OutputS/PDIF ×1 / 3.5mm Mini Jack ×1
    BluetoothVersion 5.0
    LAN ControlPJLink Supported
    Control LANRJ45 ×1
    Voice ControlNear-field RC Voice
    Auto CeilingYes
    360° Free ViewingSupported
    ECO Standby<0.5W
    Power RequirementsAC 100–240V, 50/60Hz
    Power Consumption435W Max Normal / 240W Max
    Operating Temperature0–40°C
    Operating Humidity20–85%
    Storage Temperature-10–50°C
    High Altitude Support0–3000 m
    Dust FilterWith Filter
    Filter Life8,000 hours
    Maximum Dimensions (W × D × H)405 × 358 × 137 mm
    Net WeightApprox. 7.9 kg
    Packaging Dimensions (W × D × H)510 × 498 × 260 mm
    Gross WeightApprox. 10.4 kg
    Manual LanguagesChinese, English
    OSD LanguagesEnglish, Chinese
    Standard AccessoriesPower Cord, Remote Control
