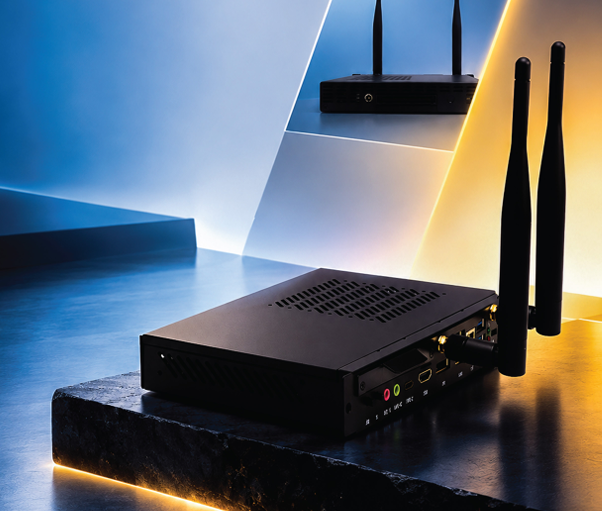

Apollo- i5/i7 13th gen OPSC-API5 / API7
Key Features
- 13th Gen Intel® Core™ Performance
- Supports DDR4-3200 memory and M.2 NVMe SSD storage
- High-Quality Graphics
- Advanced Connectivity
- Compact OPS Integration

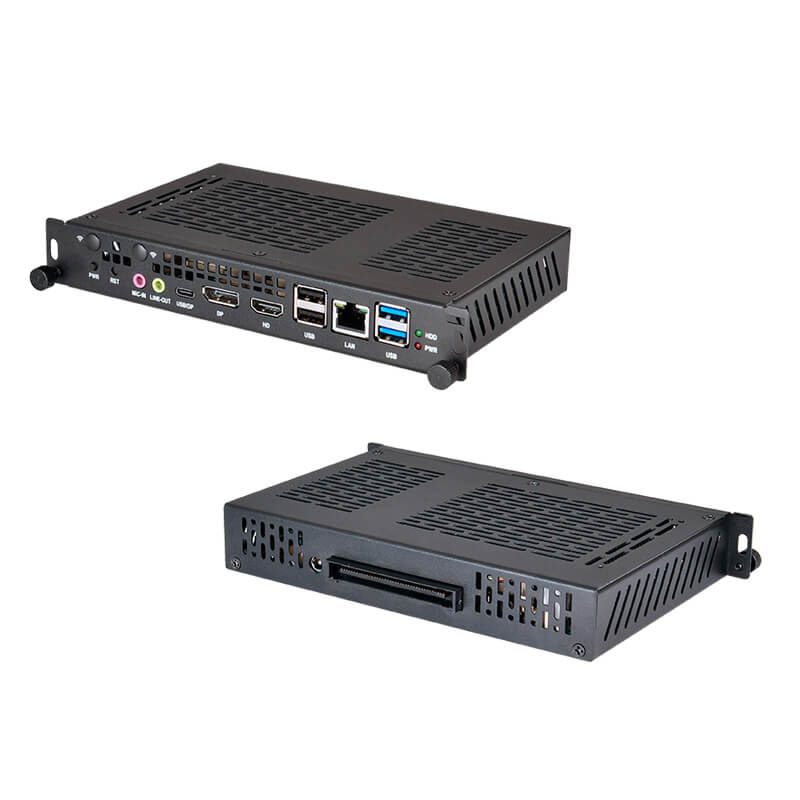

The AP-i5/i7 13th Gen OPS is a powerful and versatile computing solution designed to enhance the performance of interactive flat panel displays, digital signage systems, and professional presentation environments. Equipped with Intel® Core™ i5 or i7 13th Gen processor options, this OPS module delivers responsive computing performance for multitasking, multimedia playback, interactive learning, business presentations, and demanding office applications. Its compact, space-saving design integrates seamlessly with compatible OPS-enabled displays, helping create a clean and organized workspace without the need for a separate desktop computer.
Featuring DDR4-3200 memory support and high-speed M.2 NVMe SSD storage, the AP-i5/i7 OPS enables smooth application loading, efficient data access, and reliable everyday operation. Integrated Intel® Iris® Xe Graphics supports high-quality visual output for presentations, digital content, and multimedia applications. With HDMI and DisplayPort connectivity, USB ports, Gigabit Ethernet, dual-band Wi-Fi 6, and Bluetooth 5.2, it offers flexible connectivity for peripherals, networks, and wireless accessories. Compatible with Windows® 10, Windows® 11, and other supported operating systems, this OPS computing module is an ideal choice for educational institutions, corporate meeting rooms, training centers, conference facilities, and digital signage applications.
Tech Specs
| Product Model | OPSC-API5 / API7 |
| Processor | Intel® Core™ i5 / i7 13th Gen |
| CPU Architecture | 8 cores, 12 threads (4 Performance + 4 Efficiency cores, as provided) |
| Maximum Turbo Frequency | Up to 4.4 GHz |
| Intel Smart Cache | 12 MB |
| Base Power | 15 W |
| Maximum Turbo Power | 55 W |
| Memory Type | DDR4 SO-DIMM, 260-pin |
| Memory Voltage | 1.2 V |
| Memory Speed | DDR4-3200 |
| Memory Capacity Support | 8 GB / 16 GB / 32 GB per module |
| Storage Interface | M.2 2280 SSD, NVMe only |
| Storage Options | 256 GB / 512 GB / 1 TB |
| Expansion Interface | 1 × Mini PCIe |
| Graphics | Intel® Iris® Xe Graphics |
| Maximum Dynamic Graphics Frequency | Up to 1.2 GHz |
| Audio | Onboard Realtek HD Audio Codec |
| Audio Channel Support | 5.1-channel HD Audio |
| Audio Input/Output | 1 × Audio Output, 1 × Microphone Input |
| Ethernet | Integrated Realtek RTL8111 series LAN controller |
| Wireless Connectivity | Wi-Fi 6 (802.11ax/ac), dual-band 2.4 GHz / 5 GHz |
| Bluetooth | Bluetooth 5.2 |

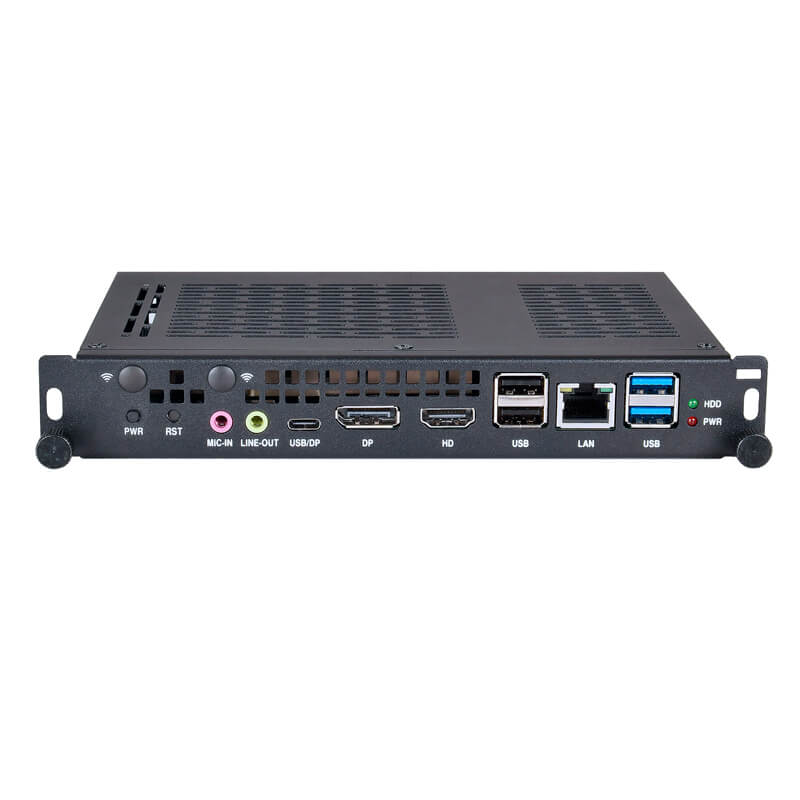

| Front USB Ports | 2 × USB 3.0, 4 × USB 2.0 |
| USB Type-C | 1 × USB-C |
| Wireless Interfaces | 1 × Wi-Fi, 1 × Bluetooth |
| Status Indicator | 1 × Status LED |
| Display Outputs | 1 × HDMI, 1 × DisplayPort (DP) |
| Wi-Fi Antenna Connectors | 2 × Wi-Fi Antennas |
| LAN Port | 1 × LAN |
| Power Input | 19 V DC |
| OPS Connector | Standard 80-pin OPS connector |
| Chassis Color | Black |
| Dimensions – Option 1 | 119 × 108 × 30 mm (L × W × H) |
| Dimensions – Option 2 | 195 × 108 × 30 mm (L × W × H) |
| Operating System | Windows® 10, Windows® 11, and other operating systems |
| Operating Temperature | −20°C to 55°C |
| Relative Humidity | 5%–95%, non-condensing |
