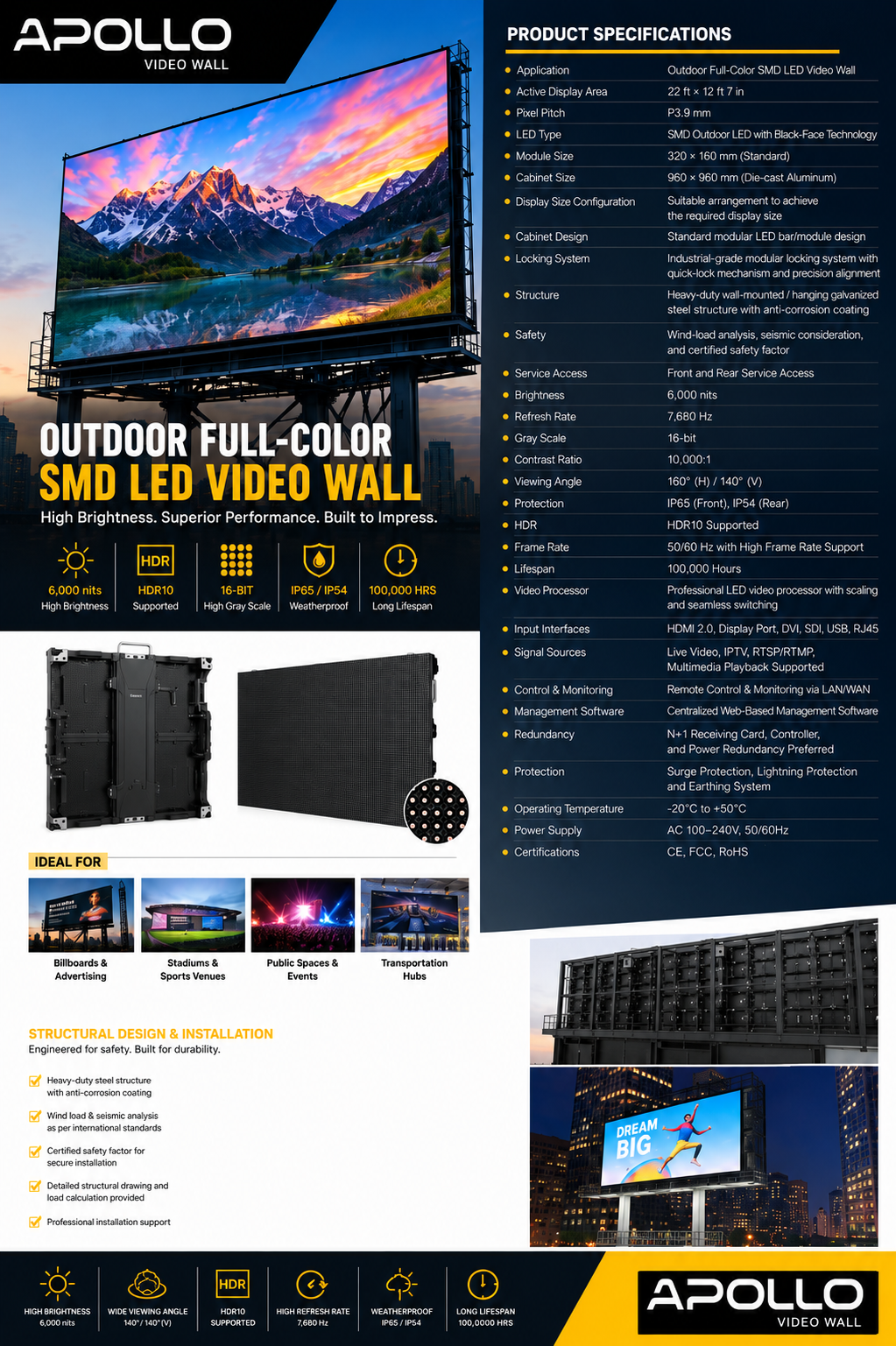

The Apollo P23.9 Outdoor Full-Color SMD LED Video Wall is a professional-grade, high-brightness outdoor LED display solution engineered for large-scale digital advertising, sports venues, public events, transportation hubs, commercial environments, and other demanding outdoor applications. Designed to deliver exceptional visibility, durability, and image performance, this LED video wall combines advanced SMD LED technology with a rugged modular construction to provide reliable operation in a wide range of outdoor conditions. With an impressive 6,000-nit brightness, the display produces bright, vivid, and highly visible content even under direct sunlight, making it an ideal choice for high-impact outdoor advertising and information displays.

Featuring a P23.9 mm pixel pitch and Black-Face SMD LED technology, the Apollo LED Video Wall is designed to provide excellent contrast, vibrant colors, and clear image reproduction. The black-face LED design helps improve perceived contrast and enhances image depth, allowing advertisements, videos, graphics, branding, and live content to remain visually engaging from a distance. Its 16-bit grayscale processing enables smooth tonal transitions and detailed image reproduction, while HDR10 support further enhances brightness range, color depth, and overall picture quality. The combination of advanced image processing, 10,000:1 contrast ratio, and a wide 160° horizontal / 140° vertical viewing angle allows audiences to enjoy clear and consistent visuals from different viewing positions.

The display is equipped with an exceptionally high 7,680 Hz refresh rate, ensuring smooth and stable playback of fast-moving content. This makes the Apollo LED Video Wall particularly suitable for sporting events, concerts, live broadcasts, stage productions, advertising campaigns, and environments where cameras are frequently used. The high refresh rate helps minimize flickering and scanning artifacts when the screen is captured by professional cameras, delivering cleaner footage for live streaming, television production, and event recording.

Built specifically for outdoor environments, the Apollo LED Video Wall incorporates robust protection and structural features. The display provides IP65 front protection and IP54 rear protection, helping protect the LED modules and internal components from dust, moisture, and challenging weather conditions. It is designed to operate reliably across a temperature range of -20°C to +50°C, making it suitable for installation in a variety of climates. The system also incorporates surge protection, lightning protection, and an earthing system to improve operational safety and protect critical components from electrical and environmental risks.

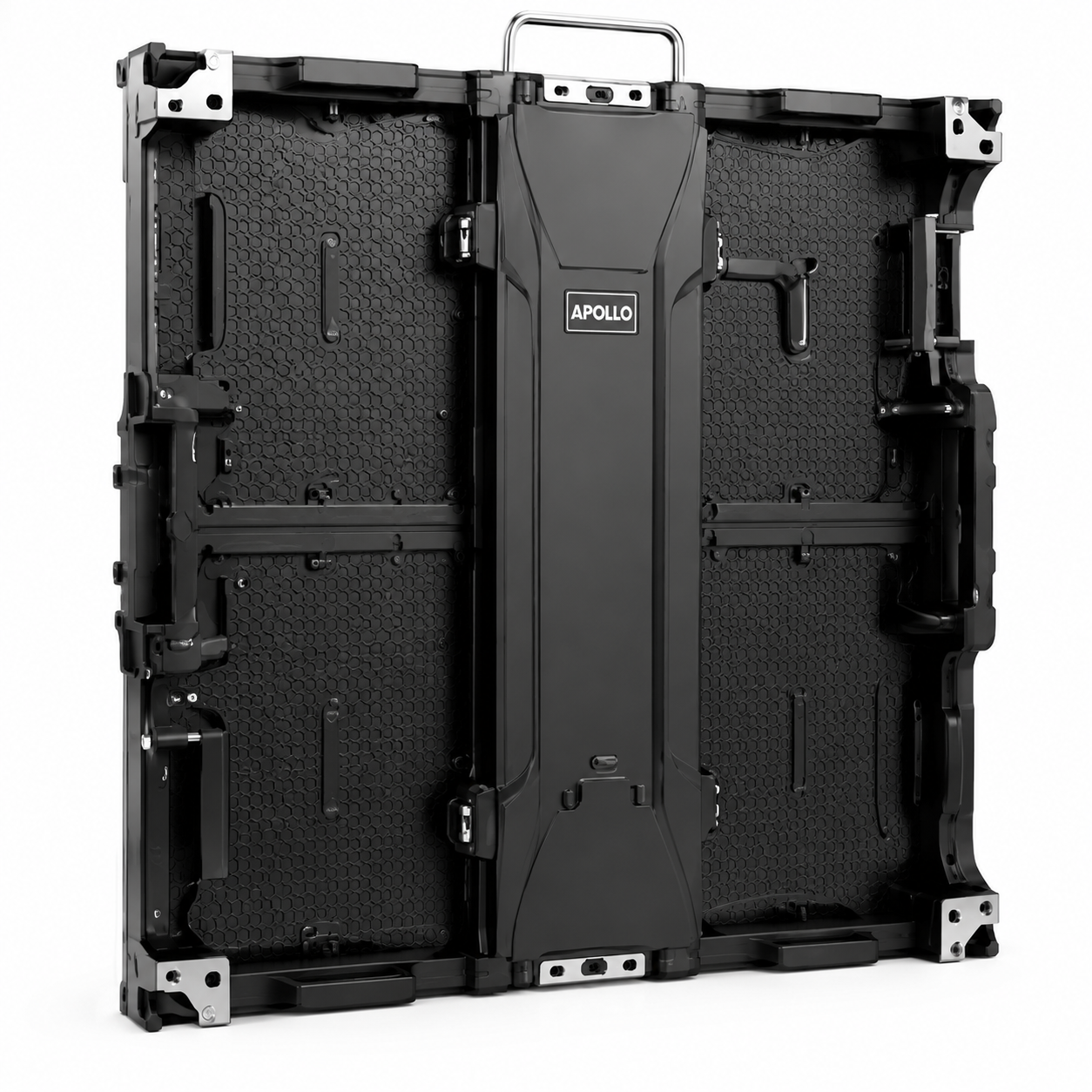

The Apollo LED Video Wall utilizes 960 × 960 mm die-cast aluminum cabinets, offering a strong yet practical modular construction. The cabinet design supports efficient installation, alignment, maintenance, and replacement of individual modules or components. An industrial-grade quick-lock modular locking system provides secure cabinet connection and precision alignment, helping installers achieve a uniform and professional display surface. The modular design also makes the system suitable for a variety of custom display configurations, allowing the overall screen size to be arranged according to specific project requirements.

For maintenance convenience, the system supports front and rear service access, enabling technicians to access key components without requiring complicated dismantling procedures. This is especially valuable for large outdoor installations where accessibility and maintenance time are important considerations. The display also supports N+1 redundancy for receiving cards, controllers, and power supplies, helping minimize downtime and improve system reliability in mission-critical applications.

The Apollo LED Video Wall is designed to work with professional video processing and a wide range of signal sources. Its supported interfaces include HDMI 2.0, DisplayPort, DVI, SDI, USB, and RJ45, providing flexible connectivity for media players, computers, cameras, video processors, broadcasting equipment, and other professional AV systems. The system supports live video, IPTV, RTSP/RTMP, and multimedia playback, making it suitable for both scheduled digital signage and real-time content applications.

Remote system management is also supported through LAN/WAN connectivity, allowing operators and technicians to monitor and manage the display remotely. The centralized web-based management software provides convenient control and monitoring capabilities, helping reduce the need for frequent on-site intervention. This makes the Apollo LED Video Wall an effective solution for organizations operating large digital signage networks or multiple displays across different locations.

With a rated lifespan of up to 100,000 hours, the Apollo P23.9 LED Video Wall is engineered for long-term professional operation. Its heavy-duty galvanized steel mounting structure with anti-corrosion coating provides a solid foundation for permanent outdoor installations, while wind-load analysis, seismic considerations, and certified safety factors support safer structural deployment. The system can be configured for wall-mounted or hanging applications depending on project requirements.

Overall, the Apollo P23.9 Outdoor Full-Color SMD LED Video Wall combines high brightness, advanced image performance, rugged weather protection, modular construction, professional connectivity, remote management, and redundancy features into a comprehensive outdoor display solution. It is an excellent choice for large-format billboards, outdoor advertising, stadiums, sports venues, concerts, public spaces, transportation centers, corporate branding, entertainment venues, and large-scale digital signage projects where visibility, reliability, and professional-quality content presentation are essential.
